| 型钢技术参数 |
|

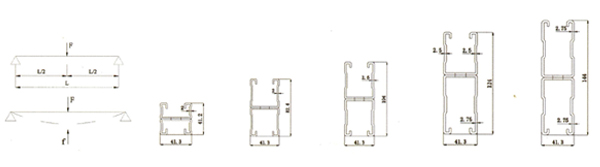

荷载[ kN ]，L/200集中荷载
|
|
CB2021
|
CB2041
|
CB2552
|
CB2562
|
CB2572
|
跨距L(cm)
|
F*
|
f
|
F*
|
f
|
F*
|
f
|
F*
|
f
|
F*
|
f
|
25
|
4.29
|
0.1
|
8.19
|
0.0
|
13.53
|
0.0
|
14.76
|
0.0
|
20.41
|
0.0
|
50
|
4.29
|
0.5
|
8.19
|
0.2
|
13.53
|
0.1
|
14.76
|
0,1
|
20.41
|
0.1
|
75
|
4.29
|
1.8
|
8.19
|
0.6
|
13.53
|
0.4
|
14.76
|
0,3
|
20,41
|
0.3
|
100
|
3.89
|
4.0
|
8.19
|
1.4
|
13.53
|
1.0
|
14.76
|
0.7
|
20.41
|
0,6
|
125
|
3.11
|
6.2
|
8.19
|
2.7
|
13.53
|
2.0
|
14.76
|
1.3
|
20.41
|
1.2
|
150
|
2.18
|
7.5
|
7.27
|
4.2
|
12.65
|
3.3
|
14.76
|
2.3
|
20.41
|
2.1
|
175
|
1.61
|
8.8
|
6.24
|
5.7
|
10.84
|
4.5
|
14.76
|
3.6
|
20.07
|
3.2
|
200
|
1.22
|
10.0
|
5.46
|
7.4
|
9.49
|
5.9
|
13.29
|
4.8
|
17.56
|
4.2
|
225
|
0.97
|
11.3
|
4.85
|
9.4
|
8.43
|
7.4
|
11.81
|
6.1
|
15.61
|
5.4
|
250
|
0.78
|
12.5
|
4.36
|
11.5
|
7.59
|
9.2
|
10.63
|
7.6
|
14.05
|
6.6
|
275
|
0.65
|
13.8
|
3.92
|
13.8
|
6.90
|
11.1
|
9.66
|
9.2
|
12.77
|
8.0
|
300
|
0.54
|
15.0
|
3.28
|
15.0
|
6.33
|
13.2
|
8.86
|
10.9
|
11.71
|
9.5
|
325
|
0.46
|
16.3
|
2.80
|
16.3
|
5.84
|
15.5
|
8.18
|
12.8
|
10.81
|
11.2
|
350
|
0.40
|
17.5
|
2.41
|
17.5
|
5.29
|
17.5
|
7.59
|
14.8
|
10.03
|
12.9
|
375
|
0.35
|
18.8
|
2.11
|
18,8
|
4.62
|
18.8
|
7.09
|
17,0
|
9.37
|
14.9
|
400
|
0.31
|
20.0
|
1.85
|
20.0
|
4.05
|
20.0
|
6.64
|
19.4
|
8.78
|
16.9
|
425
|
0.27
|
21.3
|
1.64
|
21.3
|
3.60
|
21.3
|
6.09
|
21.3
|
8.26
|
19.1
|
450
|
0.24
|
22.5
|
1.46
|
22.5
|
3.20
|
22.5
|
5.42
|
22.5
|
7.80
|
21.4
|
475
|
0.22
|
23.8
|
1.31
|
23.8
|
2.88
|
23.8
|
4.87
|
23.8
|
7.38
|
23.8
|
500
|
0.20
|
25.0
|
1.18
|
25.0
|
2.59
|
25.0
|
4.39
|
25.0
|
6.64
|
25.0
|
①挠度f②长细比L/r<300;③*由焊点剪切力确定
